History
When a loyal customer asked him to build a truck in 1911, the Company took on a new direction. As the result of the success, Charles Arthur Tilt decided to discontinue car manufacturing and to concentrate solely on truck manufacturing.

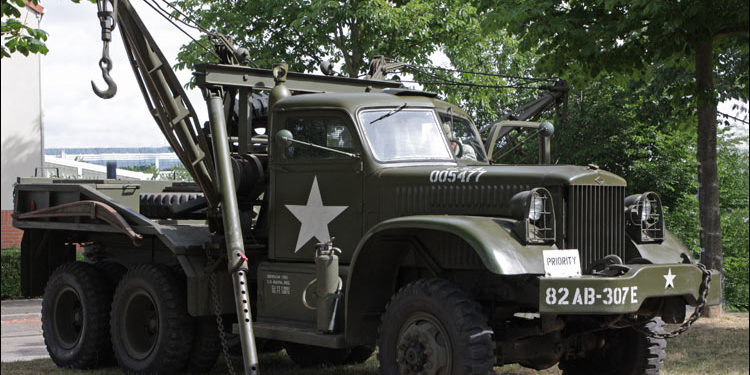

The Diamond T 969 is selected by the US Army in 1940. Its construction began in 1940, in the Corbitt factory. Following the construction of a small series, some components, in particular the dashboard, were standardized according to the US Army standards. Its name was then changed for 969A instead of 969. This wrecker is equipped with 2 crane booms that give it a great versatility. Each crane boom is linked to a 5 ton winch located behind the truck’s cab. Two retractable legs allow the stabilization of the truck. The crane booms can work together or be disconnected making two independent cranes. At the front takes place a 5 ton Gar Wood Winch. A total of 7 245 units were manufactured by Diamond T, Marmon Herrington and Corbitt companies.
Technical data
All terrain 6X6 when front axle engaged. Transfer case Empty weight : 20,500 lb (9,300 Kg) Length : 291 5/8 ” (7.39 m) Width : 101 ” (2.56 m) Height : 111 ” (2.82 m) (also depending on booms position) Ground clearance : 11” (0.28 m) Engine : Hercules RXC 6 cylinders, gasoline, 521 cu.in. Engine power : : 119 hp at 2200 rpm Oil : 4 gallons (15 liters) Water : 11.6 gallons (44 liters) propellant : gas Tank : 60 gallons (227 liters) Fuel consumption : 3.5 mpg (80l/100Km) Maximum speed : 40 mph (65 km/h) Gear box : 5 speeds forward, 1 speed reverse Transfer case : range 1 and 1.72 Electricity : 6 Volts with avec 2 batteries in parrallel Braking : air brakes
Crane booms : Holmes W45 twin-boom, each with a 5 ton winch
